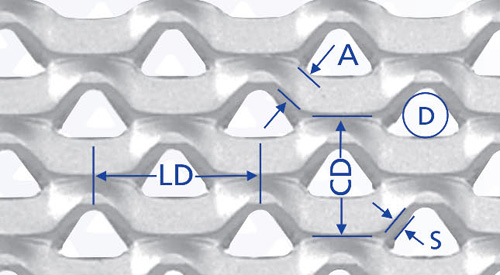

Rasp mesh expanded metal

LD LONG WAY OF MESH
CD SHORT WAY OF MESH
A STRAND WIDTH
S THICKNESS
D DIAMETER

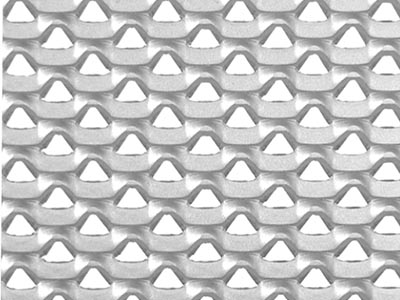

MRA 8

Raw material: MILD STEEL DC 02
Hole diameter: mm 1,3
Strand width: mm 2
Thickness: mm 1,5
Weight: KG/M² 9 + – 10%
Maximum width: mm 650

MRA 10

Raw material: MILD STEEL DC 02
Hole diameter: mm 1,7
Strand width: mm 2
Thickness: mm 1,5
Weight: KG/M² 8 + – 10%
Maximum width: mm 650

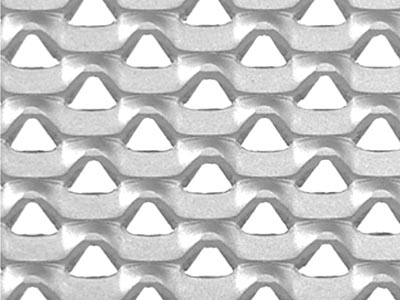

MRA 12,5

Raw material: MILD STEEL DC 02
Hole diameter: mm 2,5
Strand width: mm 3
Thickness: mm 2
Weight: KG/M² 12 + – 10%
Maximum width: mm 650

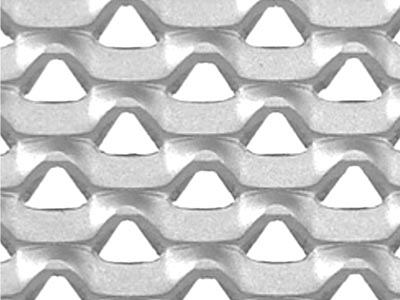

MRA 16

Raw material: MILD STEEL DC 02
Hole diameter: mm 3,5
Strand width: mm 5
Thickness: mm 2
Weight: KG/M² 13 + – 10%
Maximum width: mm 650
